A spray ball is a crucial component in Clean-In-Place (CIP) systems, especially in industries like dairy, beverage, pharmaceutical, and food processing. It’s used for cleaning the interior surfaces of tanks, vessels, and pipelines—without needing to dismantle the equipment.

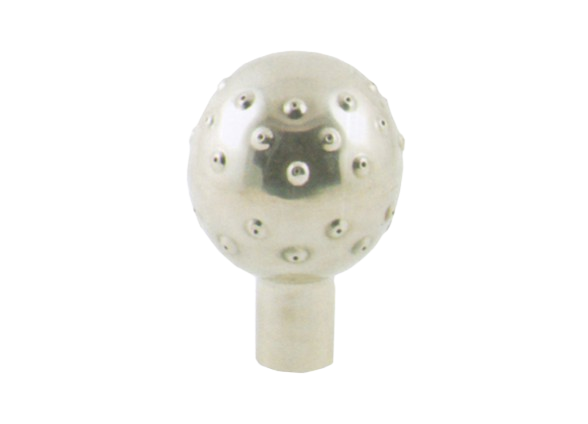

Indian Spray Ball
| Design Type | Fixed or Rotating Spray Ball with static or rotary options for cleaning |
|---|---|
| Material | SS 304, SS 316, SS 316L (hygienic-grade stainless steel) |
| Spray Coverage | 180°, 270°, 360° spray patterns for complete tank cleaning |
| Connection Type | Tri-Clamp (TC) or Welded connection for easy fitting |
| Applications | Ideal for CIP (Cleaning in Place) in Dairy, Food, Beverage, Pharma industries |
| Flow & Pressure | Flow rate: 20–60 LPM, Pressure: 1–3 bar (optimized for CIP systems) |

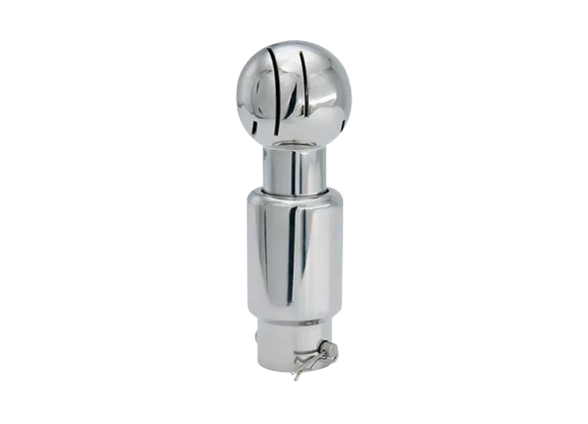

Pin Type Imported Spray Ball
| Design Type | Pin Type – Static design with precision-drilled holes for uniform cleaning |
|---|---|
| Material | SS 316 / SS 316L (hygienic-grade stainless steel) |
| Spray Coverage | 360° full coverage for efficient and complete cleaning |
| Connection Type | Available with Tri-Clamp (TC) or Welded connection options |
| Applications | Ideal for CIP cleaning of tanks, fermenters, and vessels in Food, Pharma, Dairy, and Beverage industries |
| Flow & Pressure | Flow rate: 30–60 LPM, Pressure: 1.5 – 4 bar (optimized for CIP operations) |

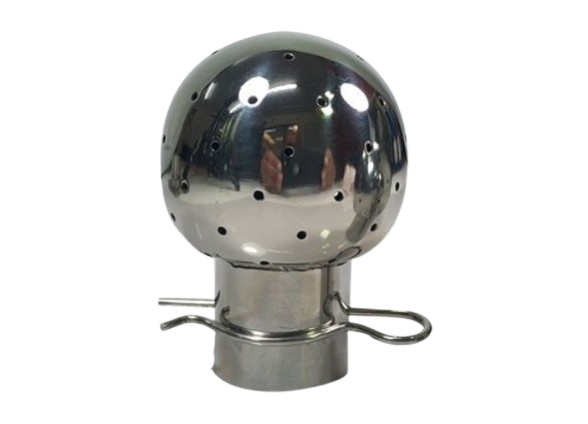

Pin Type Spray Ball
| Component | Pin Type Spray Ball |
|---|---|
| Design Type | Pin Type – Static design with precision-drilled holes for uniform cleaning |
| Material | SS 304, SS 316, SS 316L (hygienic grade stainless steel) |
| Spray Pattern | 360° full coverage (also available in 180° and 270° on request) |
| Connection Type | TC End / Weldable / Threaded – SMS, DIN, BSP, NPT options available |
| Applications | CIP cleaning for tanks, reactors, and vessels in Food, Dairy, Pharma sectors |
| Flow & Pressure | Flow: 20–60 LPM, Pressure: 1–4 bar (depending on hole size and design) |
.png)

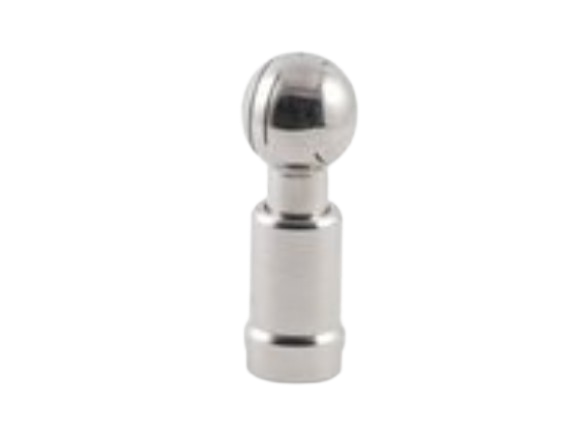

Spray Ball BSP
| Design Type | Static or Rotary Spray Ball with BSP threaded connection |
|---|---|
| Material | SS 304, SS 316, SS 316L (hygienic & corrosion-resistant) |
| Spray Coverage | Available in 180°, 270°, and 360° spray patterns |
| Connection Type | BSP Male/Female Threaded Ends (British Standard Pipe) |
| Applications | CIP systems for tanks, vessels, mixers in Dairy, Pharma, Food & Beverage |
| Flow & Pressure | Flow: 25–60 LPM, Pressure: 1.5 – 4 bar (optimized for CIP cleaning) |

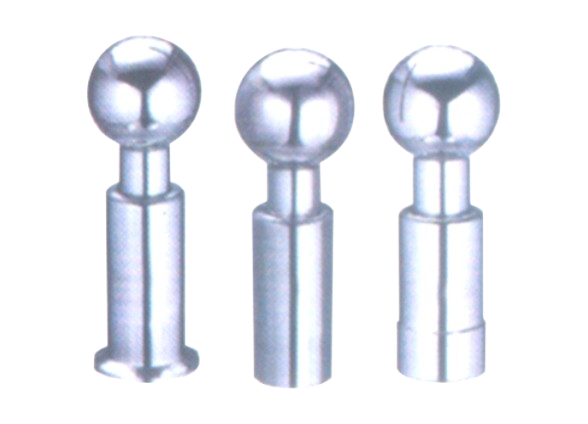

SMS TC Cleaning
| Design Type | SMS (Short Meniscus Standard) with Tri-Clamp connection for easy installation and removal |
|---|---|
| Material | SS 304, SS 316, SS 316L (food-grade and hygienic) |
| Cleaning Method | Ideal for CIP (Cleaning in Place) systems used in tanks, pipes, and vessels |
| Connection Type | TC (Tri-Clamp) connection, compatible with SMS unions |
| Applications | Used in Dairy, Food Processing, Pharmaceutical, and Beverage industries for cleaning equipment and pipelines |
| Temperature & Pressure | Temperature: -10°C to 120°C, Pressure: PN 6 to PN 40 (depending on design) |

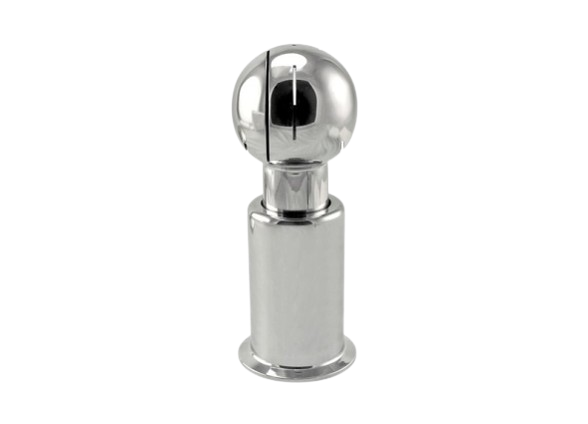

Spray Ball TC END
| Design Type | Static or Rotating Spray Ball with Tri-Clamp (TC) end connection |
|---|---|
| Material | SS 304, SS 316, SS 316L (hygienic and corrosion-resistant stainless steel) |
| Spray Coverage | Available in 180°, 270°, 360° spray patterns for effective cleaning |
| Connection Type | Tri-Clamp (TC) connection for easy installation and removal |
| Applications | Used in CIP systems for cleaning tanks, pipes, and vessels in Food, Dairy, Pharma industries |
| Flow & Pressure | Flow rate: 20–50 LPM, Pressure: 1.5 – 4 bar (based on system design) |
