Dairy Gasket
A butterfly gasket is a type of gasket commonly used in butterfly valves, which are widely employed in dairy systems, as well as in other food processing, chemical, and pharmaceutical industries. These gaskets provide a seal between the butterfly valve and its mating surfaces to ensure that the valve operates properly and prevents leaks in the system.

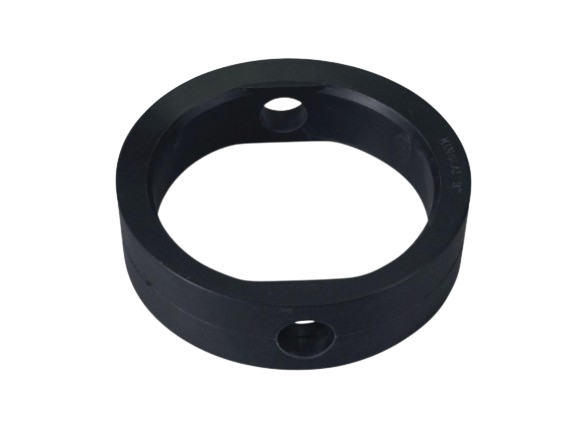

Butterfly-Gasket
| Design Type | Butterfly Valve Gasket designed for use in sanitary valve systems with a perfect seal |
|---|---|
| Material | EPDM, PTFE, Viton, Silicone (depending on application and fluid compatibility) |
| Size Range | Available for 1/2" to 8" Butterfly Valves (custom sizes available) |
| Applications | Used in Food & Beverage, Dairy, Pharmaceutical, Chemical, and Biotech industries |
| Temperature & Pressure | Temperature: -10°C to 120°C; Pressure: PN 6 to PN 40, depending on material |
| Sealing | Provides a bubble-tight seal for leak-free performance and prevents contamination |

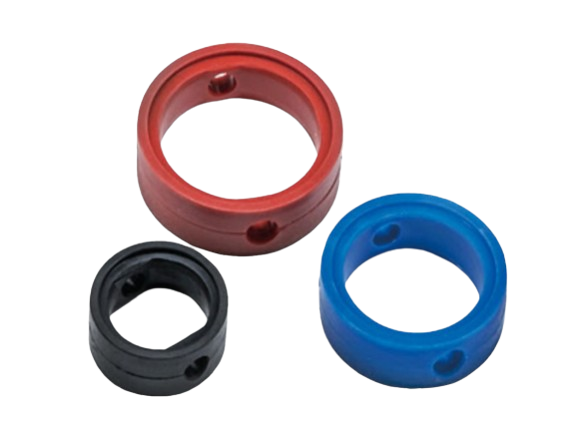

Gasket-Kit
| Design Type | Gasket Kit includes all necessary gaskets for installation and maintenance of sanitary valves and fittings |
|---|---|
| Material | EPDM, PTFE, Viton, Silicone, NBR (material based on fluid compatibility and temperature range) |
| Size Range | Available for sizes from 1/2" to 8" (custom sizes available based on valve/fitting specifications) |
| Applications | Used in Dairy, Food & Beverage, Pharmaceutical, Chemical, and Biotech industries for sealing sanitary systems |
| Temperature & Pressure | Temperature: -10°C to 150°C; Pressure: PN 6 to PN 40, depending on gasket material and application |
| Sealing | Provides reliable and bubble-tight seals for preventing leakage and contamination |

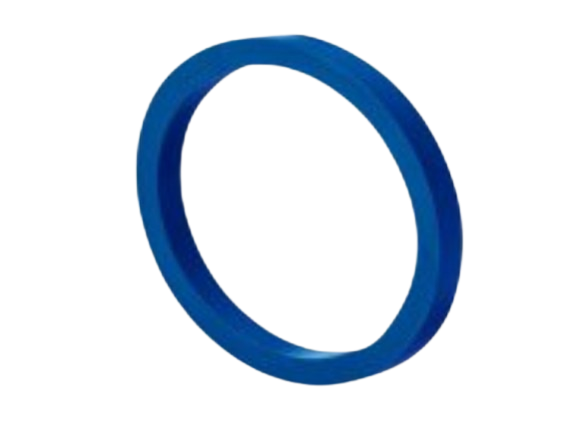

Union Ring
| Design Type | Union Ring designed for quick and secure joining of sanitary pipe systems |
|---|---|
| Material | SS 304, SS 316, SS 316L, EPDM, Viton (depending on application and fluid compatibility) |
| Size Range | Available from 1/2" to 6" (custom sizes may be available upon request) |
| Applications | Commonly used in Dairy, Food & Beverage, Pharmaceutical, and Chemical industries for easy pipe assembly and disassembly |
| Temperature & Pressure | Temperature: -10°C to 150°C; Pressure: PN 6 to PN 40 (depending on material and usage) |
| Sealing | Ensures a leak-proof connection with bubble-tight seals to prevent contamination |

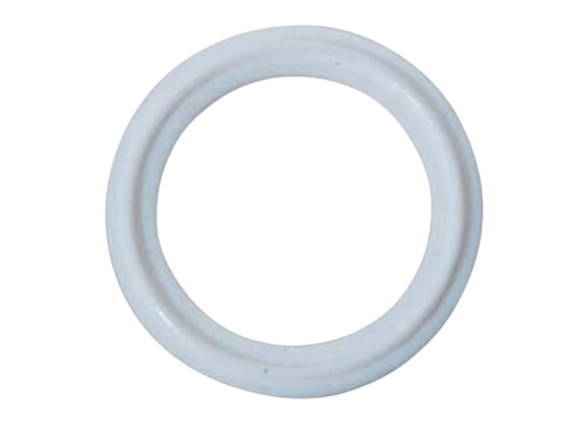

TC Gasket
| Design Type | Tri-Clamp (TC) Gasket designed for use in sanitary pipe systems to ensure leak-proof connections |
|---|---|
| Material | EPDM, PTFE, Viton, Silicone, NBR (based on application and fluid compatibility) |
| Size Range | Available for 1/2" to 6" TC connections (custom sizes available) |
| Applications | Used in Dairy, Food & Beverage, Pharmaceutical, and Chemical industries for safe and hygienic sealing |
| Temperature & Pressure | Temperature: -10°C to 150°C; Pressure: PN 6 to PN 40, depending on material and application |
| Sealing | Provides bubble-tight seals to prevent contamination and ensure a secure, hygienic connection |
